DIY SSC P7 LED / LED Bike light Parts

Many of the parts below are only available in bulk quantities from China.
Sometimes it can take up to one month to receive items from China and so this page lets you get your project going right now.
If you only need one item, not 10 or 20 of them from China, you can order it here.
Note: I ship most orders the same day via USPS priority mail which is usually 2-3 day service for USA and 3-5 days for international delivery.
I have much more shipping info on this page

Some of the parts below are cut on my CNC machine.
See this page for info on CNC parts.

Note: All the Marwi light mods and the lights I build run on 3.6 volt battery packs.
You cannot run my designs on anything but 3.6 volt battery packs.
I do not make or have any driver designs for higher voltage battery packs

If you want to see Beam shots or night ride video's of the Marwi SSC P7 LED lights, go to this page.

Go to this page for hookup info, projects info and mods you can do using the parts below

This is a HDPE plastic adapter that mounts to the bottom of a DX P7 LED bike light.
It lets you use the Marwi helmet and handlebar mounts shown on this page.
The stock DX light mount is not very versatile, but the Marwi mounts are.

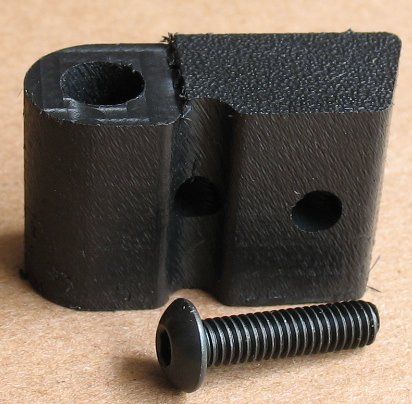

The DX adapter has two small holes and one large hole.

The small holes
One hole is the mounting screw hole and the other hole is where the power cord enters/exits the light body.
Note that you will have to unsolder the power cord wire from the circuit board inside the DX light, then push it through the small hole in the adapter and re-solder it.
This would be a good time to have a look around inside your light and make sure all is ok.

The large hole

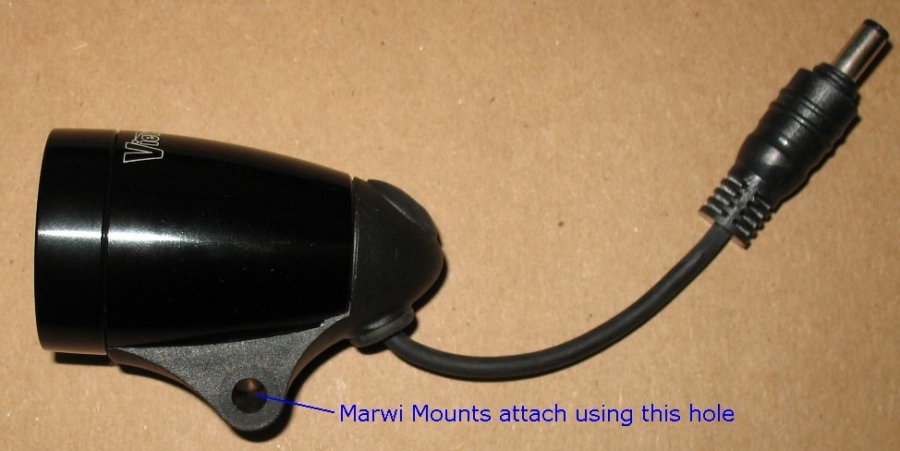

The large hole is how you mount the adapter to a Marwi Helmet or Handlebar mount.

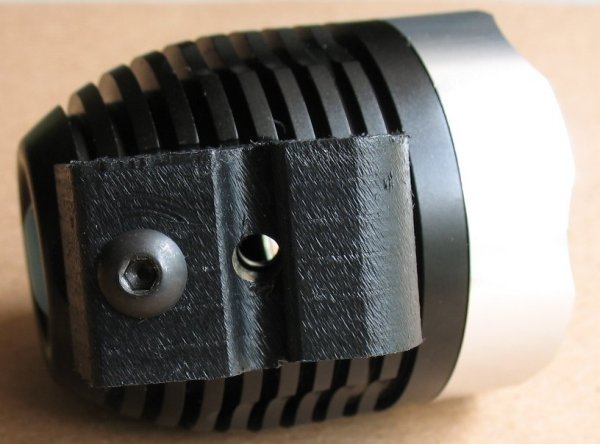

The groove in the adapter lets you bend the power cord to the left or right if you need to.

There is a small relief cut into one side of the adapter that lets you use an internal toothed lock washer.
This keeps the light from moving up and down once you crank down on the big mounting bolt.

The DX/Marwi adapter comes with a small 4mm button head screw shown above.
You may also need a Marwi Helmet mount, Marwi Handlebar mount and the Nylon Marwi mounting hardware kit shown on this page.
More info and pictures on this page

Marwi Helmet and Handle bar mounts
The Marwi mounts are very nice. I have used them for many years because they are so versatile.
I like to leave a handlebar mount on each of my bikes.
You can easily move your light from the handlebar to the helmet without removing the main mount.
The Helmet and Handle bar mounts use the same slide lock system.

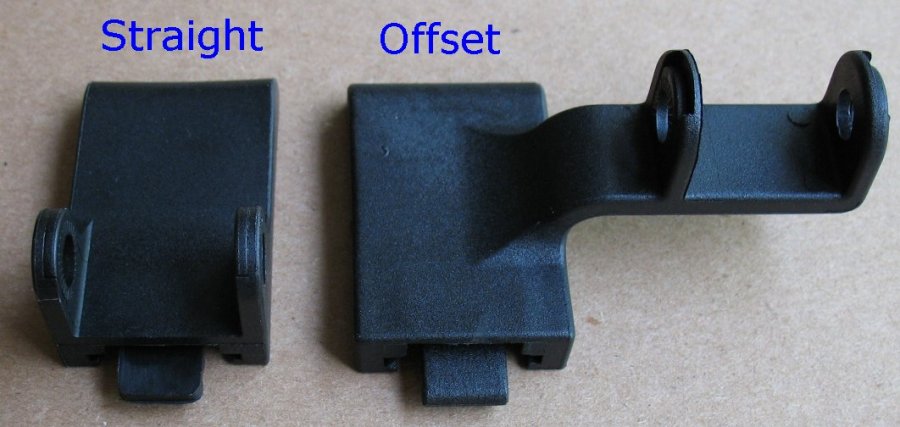

There are two slide lock mounts available. A straight mount or an offset mount.
The Offset mount gets the light out of the way of the handle bar stem.
You can re-position the handle bar mount top part 180 degrees and use two of the offset mounts for two lights on the bars.
Point each handlebar light slightly off to one side of the trail and point your helmet light right down the middle.
This is known as the "Scorched earth policy" :)

You may also need the Nylon mounting bolt kit if you do not already have a mounting bolt

Check out this page for more info and pictures on both mounts

Marwi slide on mounts

Marwi offset mounts
Note that the offset mount quantities are limited.
The handlebar and helmet mounts both come a straight mount,
but you can order an offset mount here if you need one.

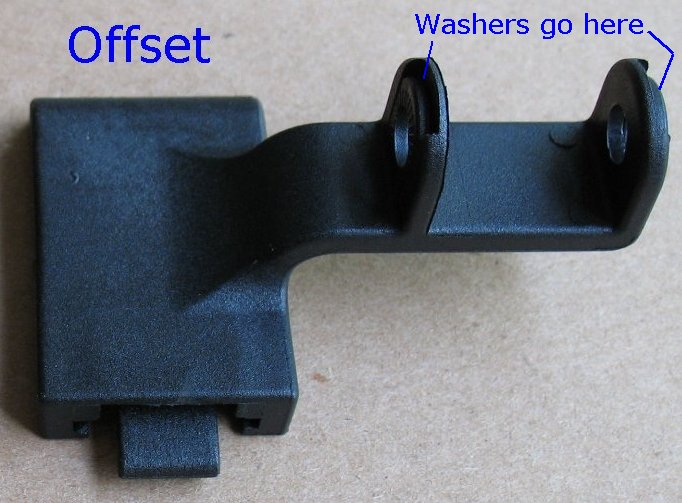

This mount comes with a couple plastic washers that snap into the uprights

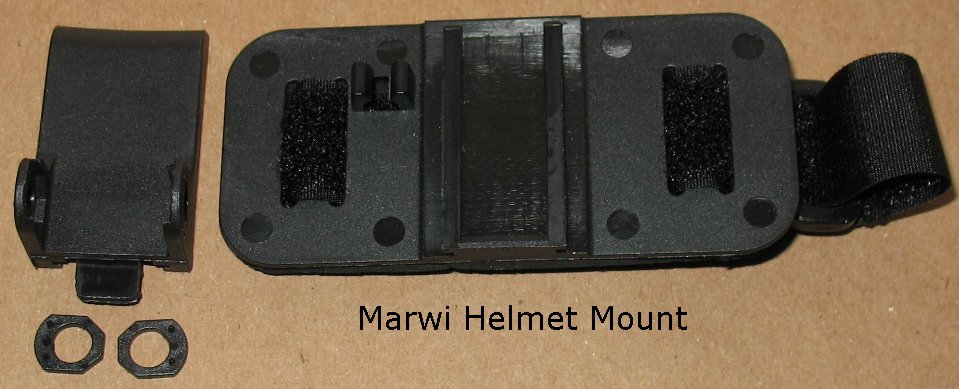

Marwi Helmet Mount

Very Light weight, flexible and durable plastic construction.
Heavy Duty, double sided Velcro, mounting strap
Mounting strap is approx. 12 inches long
Rubber under side that grips the helmet.
Has a cord snap lock off to one side.
The helmet mount comes with the Straight mount

Purchase 5 or more helmet mounts and get 10% off the price

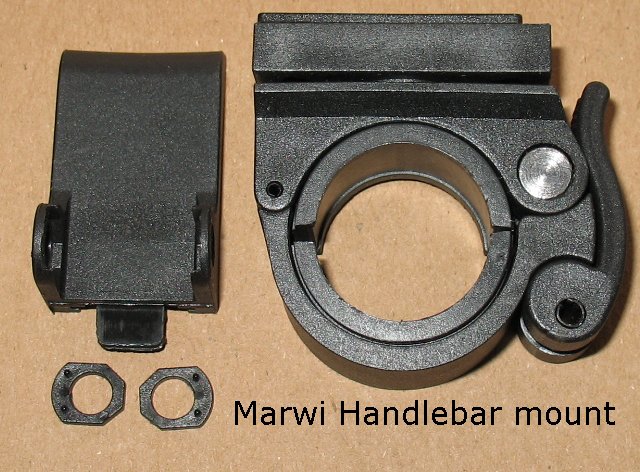

New style Marwi Handle Bar Mount

Heavy Duty, lightweight, very durable plastic construction.
Adjustable threaded cam lock
It has removable adapters for use with fat 31mm or regular 25mm handle bar sizes.
The Top mount swivels side to side so you can aim the light beam where you want it.
Includes two sizes of rubber shims
The handle bar mount comes with the Straight mount

Purchase 5 or more handlebar mounts and get 10% off the price

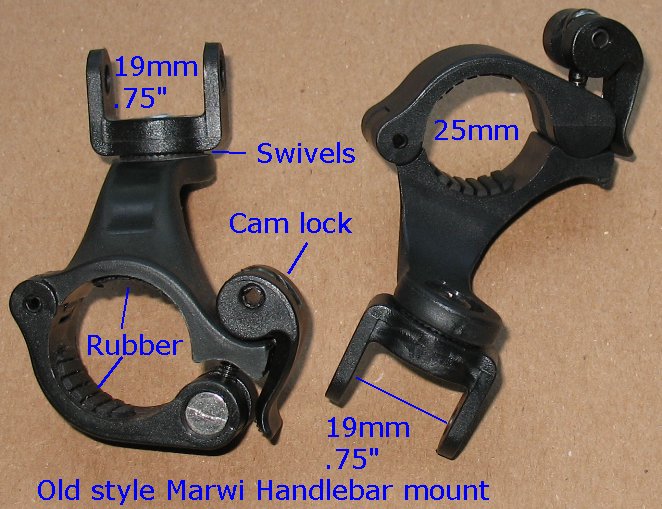

Old style Marwi Handle Bar Mount

Heavy Duty, lightweight, very durable plastic construction.
Adjustable threaded cam lock. The light mount is offset to the side.
Only fits regular 25mm handle bar sizes. Has built in rubber handlebar grips.
The Top U shaped mount swivels side to side so you can aim the light beam where you want it.
You bolt the light to the U shaped mount. The upright U shaped mount has .25" holes
This mount comes with a steel mounting bolt and nut
Option: Order the lightweight Marwi Nylon mount kit in place of the steel bolt.

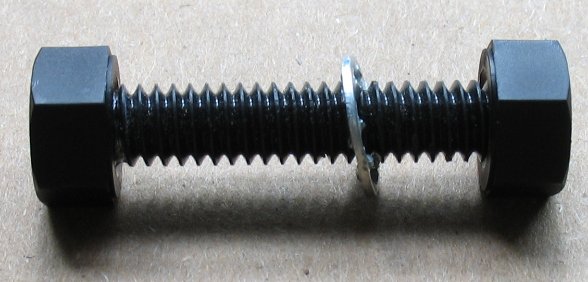

Super light weight Nylon Mounting bolt kit for Marwi lights and Mounts
The kit includes
1 x Nylon Rod
2 x Nylon nuts
2 x Internal toothed lock washers
You will need this kit if you are using the DX to Marwi adapter shown on this page.
You can replace the steel bolt and nut on Marwi lights with this hardware.
Tip: I like to super glue one nut in place and leave the other nut free to turn by hand.

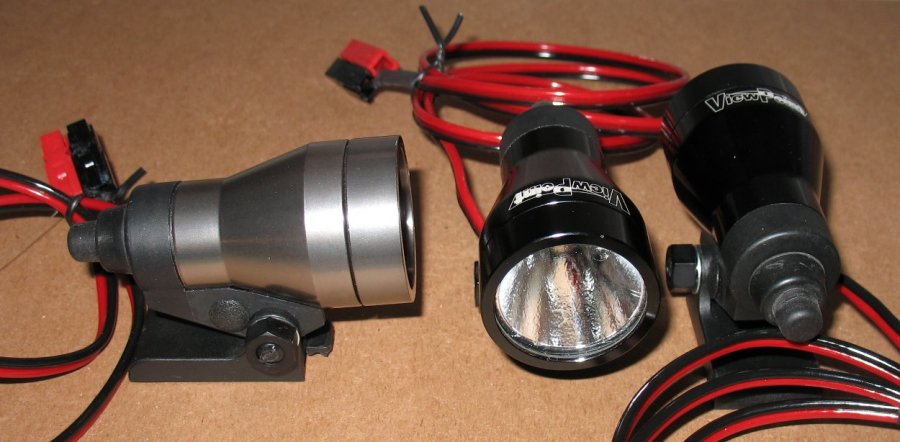

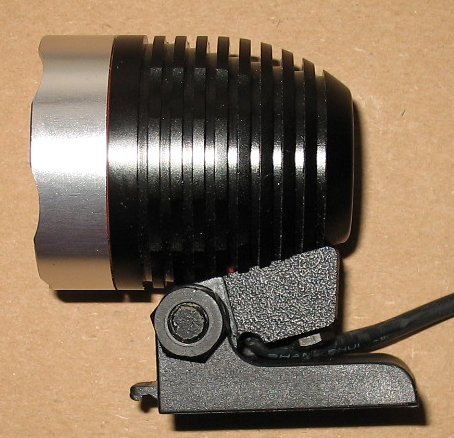

Assembled Marwi SSC P7 LED light
The Marwi SSC P7 light is not an item from a light manufacturing company that carries a warranty.
You are basically buying all the parts and paying me to assemble the parts for you.
I only offer this service because many people are not able to assemble these lights themselves.
The people I buy my parts from do not offer any warranty on any of the parts and so I cannot offer a warranty.
If you feel you need a Bike light that carries a warranty, check out some of the companies such as Light and Motion.
Be prepared to pay way more than what these Marwi SSC P7 lights are selling for.
Just giving everyone a heads up so there are no surprises and everyone understands the situation.
I am not a light manufacturing company, I am a parts sales company that offers parts for the DIY'er.
I do test and burn in every light after it is assembled to make sure it all works correctly.

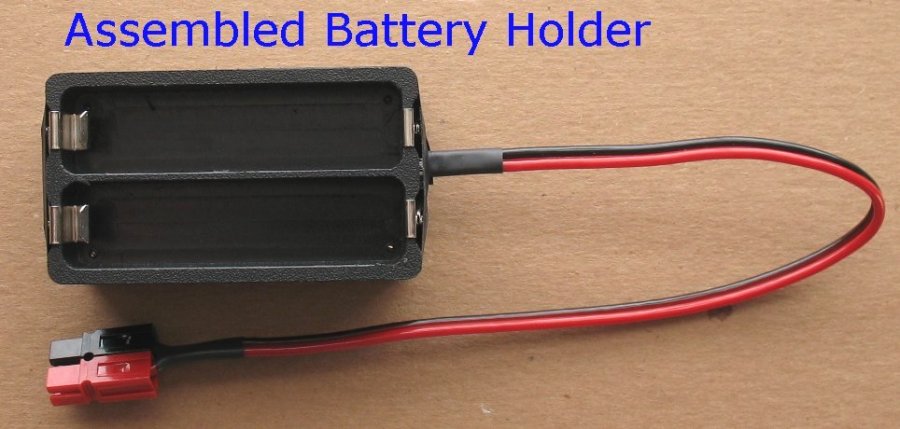

I also make an assembled 4 x 18650 battery holder and charger for use with this light.
These items can be found on this page.

Notes: All the Marwi P7 lights I build run on 3.6 volt battery packs.
You cannot run my designs on anything but 3.6 volt battery packs.
I do not make or have any driver designs for higher voltage battery packs

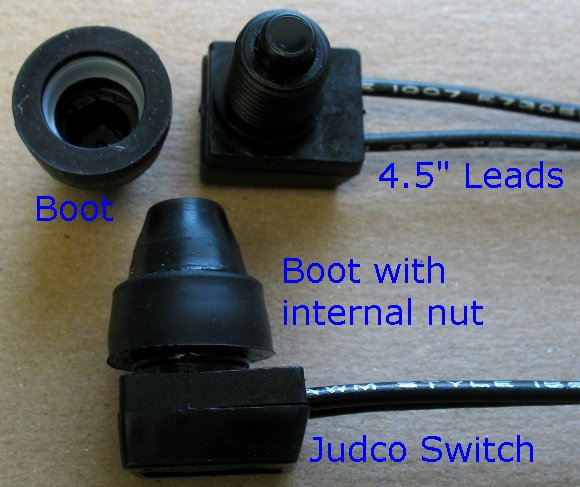

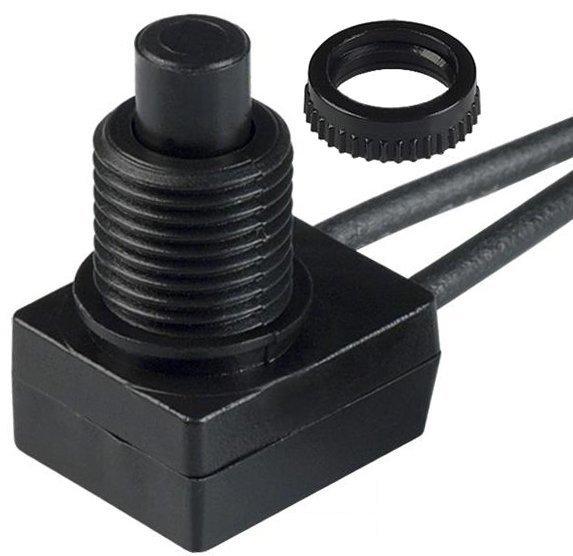

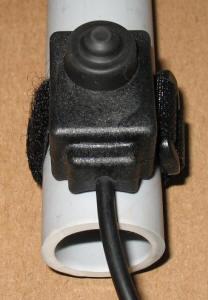

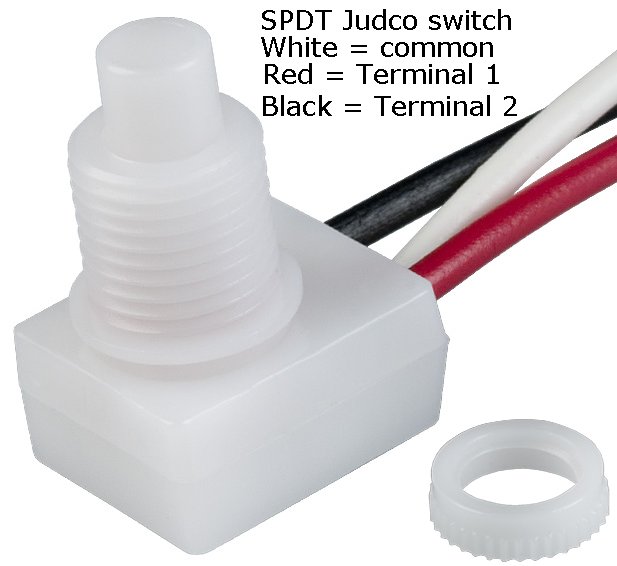

The current Marwi P7 lights have a USA made Judco push button switch and two 1400ma current regulator boards.
The lights now have two modes - Low mode = 1.4 amps - High mode = 2.8 amps.
Go to this page to read more about the Driver and switch.

The lights do not come with a mount.
You may also need a Marwi helmet, handlebar mount and Nylon bolt kit

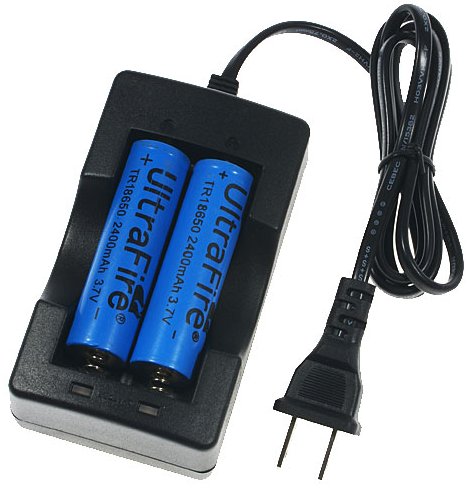

Stock - Dual 1amp Li-On Charger
The input is AC 100-240Vac 50/60hz 500ma max
It can be used all over the world, but it has flat plug ends.
See the plug converter below for round plug conversion

There are two separate 1 amp chargers in this unit.
The output is 4.2VDC at 1amp * 2

Used to charge 18650 Li-On cells.
Each charger has a red and green LED to indicate when charging is complete.
The charger does not come with batteries.

It is possible to add cords and plugs to these chargers so that you can charge external battery packs.
This page shows you how to mod this stock charger

Assembled Dual 1amp Li-On Charger
This charger is $16.55 parts + $13.00 labor = $29.55 assembled

This is the same charger as the stock charger up above
It has been modded with two external charging wires.

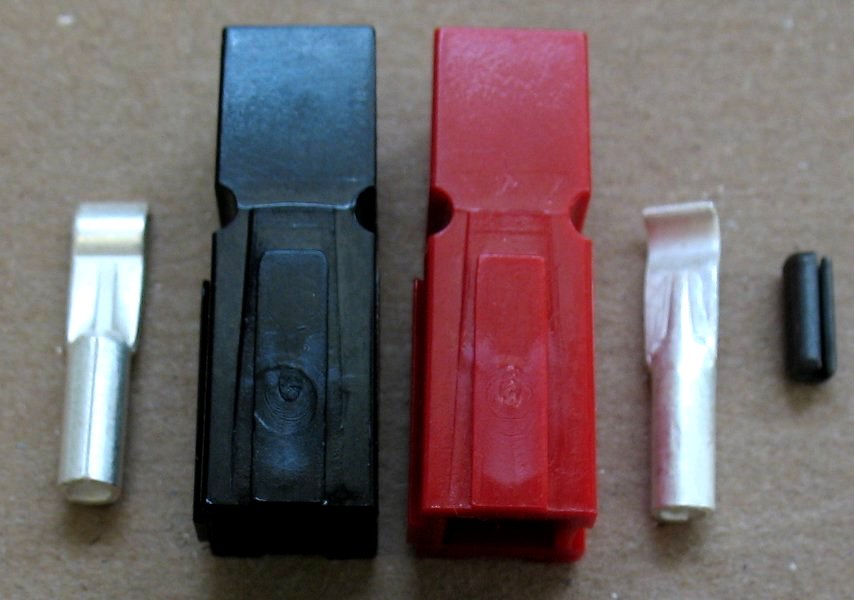

Both wires have Anderson PowerPole connectors on the ends
You can hook up my assembled battery holders directly to this charger
You can leave your batteries in the battery holder and charge the whole battery pack.
You can charge two battery packs at the same time

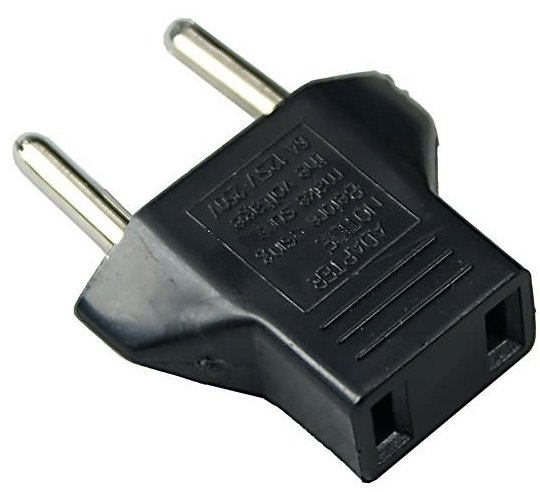

Euro round to flat plug converter
Use this plug on the chargers up above to convert the flat plug into Euro round plug format.
Sorry, I do not have a UK converter plug

Rated at 125v - 250v at 6amps

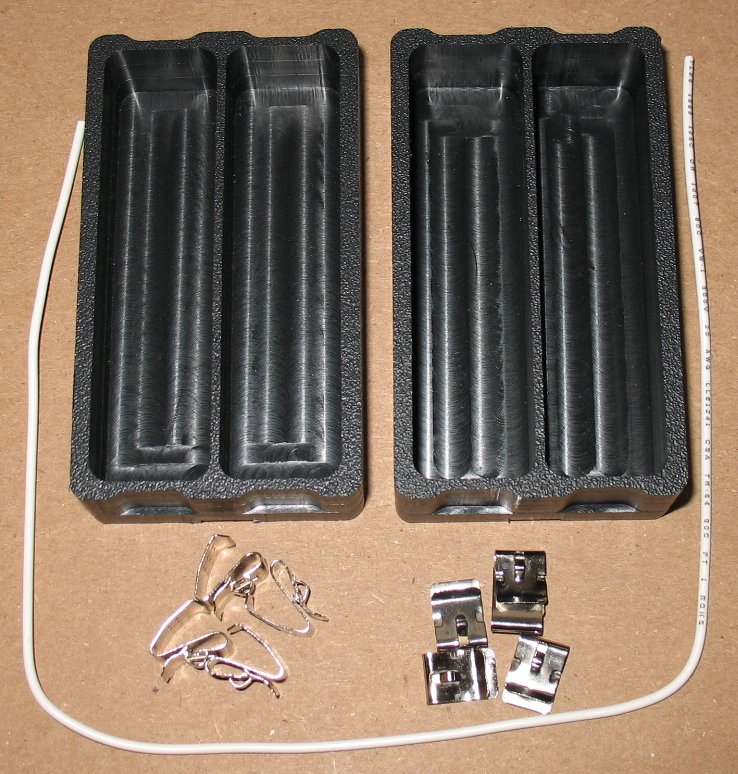

Unassembled 4 x 18650 Parallel battery holders

Sorry, these have been discontinued.

Assembled 4 x 18650 Parallel Battery Holder

Sorry, these have been discontinued.

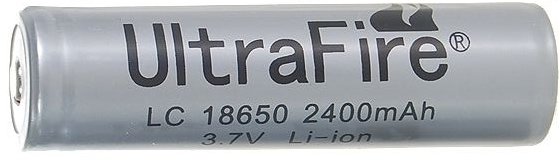

18650 2400mah 3.7v protected Li-On batteries
Used to power the P7 LED's and other devices
I use these batteries for my SSC P7 lights.
If you make your own battery packs using these batteries, you can easily mod the charger above to charge battery packs.
These batteries fit the chargers and battery holders shown on this page.

Marwi SSC P7 heat sink
I bit the bullet and had a local CNC lathe shop make a bunch of these heat sinks.
These were custom designed by me to fit exactly into the Marwi light bodies.
They were kind of expensive to have made, but they are a very nice piece of machine work.
The Marwi light bodies themselves are relatively inexpensive, and so the heat sink price is not so bad when you consider that.
This heat sink makes SSC P7 conversions a snap when using the Marwi light bodies.

The heat sink has two larger non-threaded holes for the LED + and - wires.
There are two 1-72 threaded holes for mounting a SSC P7 LED
There is plus and minus engravings showing which wire hole is positive and negative.
I did the engraving because the holes in the aluminum backing plate that is attached to the SSC P7 LED, are not symmetrical.
There is only one way the screw holes line up perfectly.

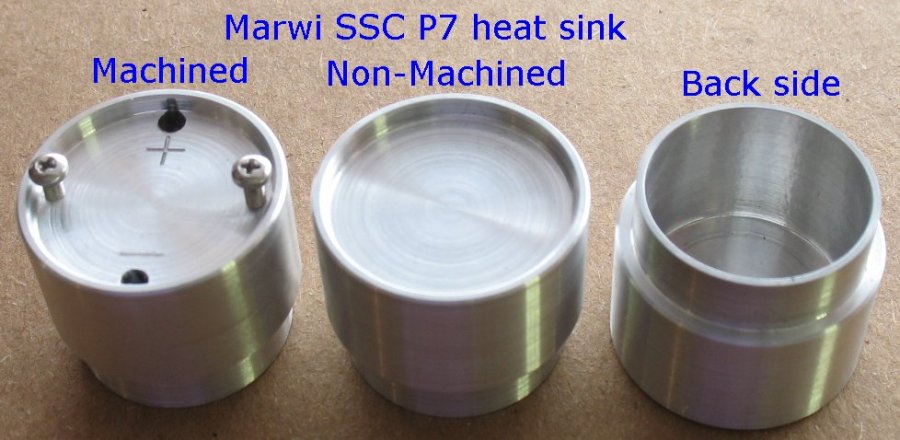

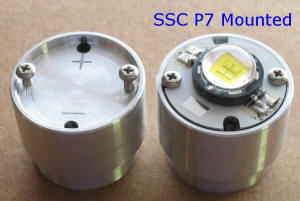

Machined heat sink with four holes and engraving

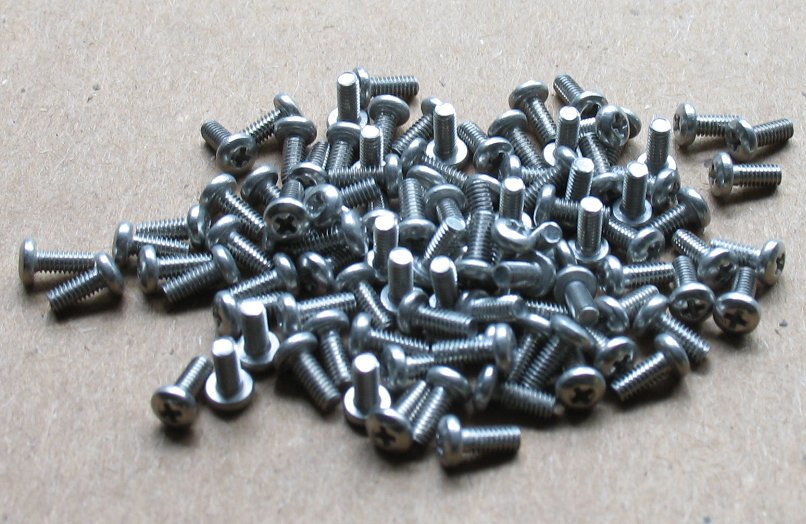

Includes two stainless steel 1-72 screws

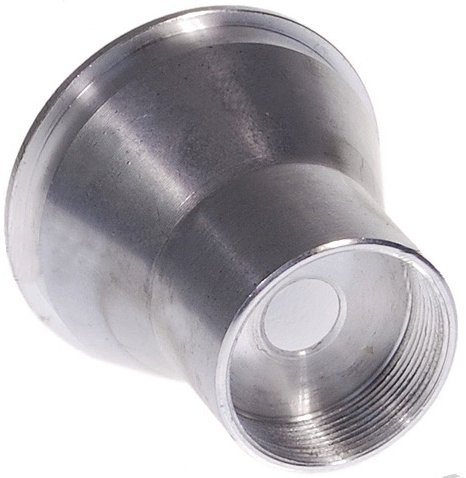

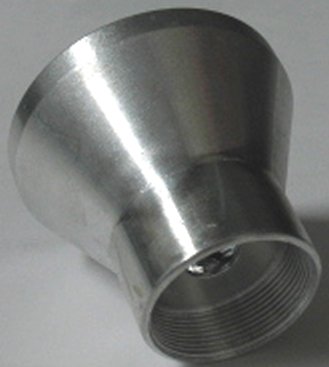

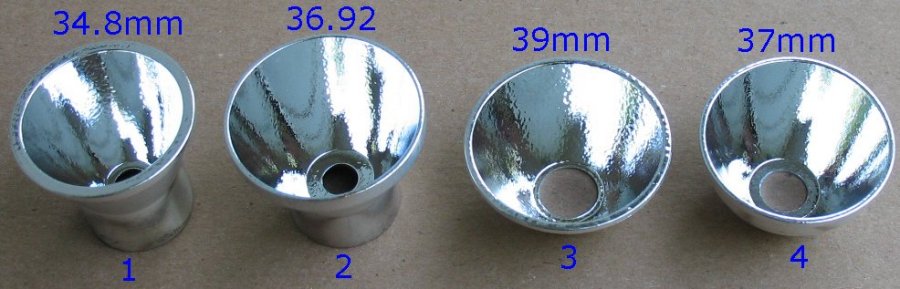

Machined 35mm aluminum reflector

Reflector #1 in image above
This reflector has been machined on my CNC machine for P7 use.
The threaded area has been removed and the hole has been enlarged to approx 9.2mm
The SSC P7 on this page fits perfectly onto the back of the machined reflector.

This is my favorite reflector and the one I use for most P7 projects.
It is used to convert Marwi Halogen lights to SSC P7 LED's

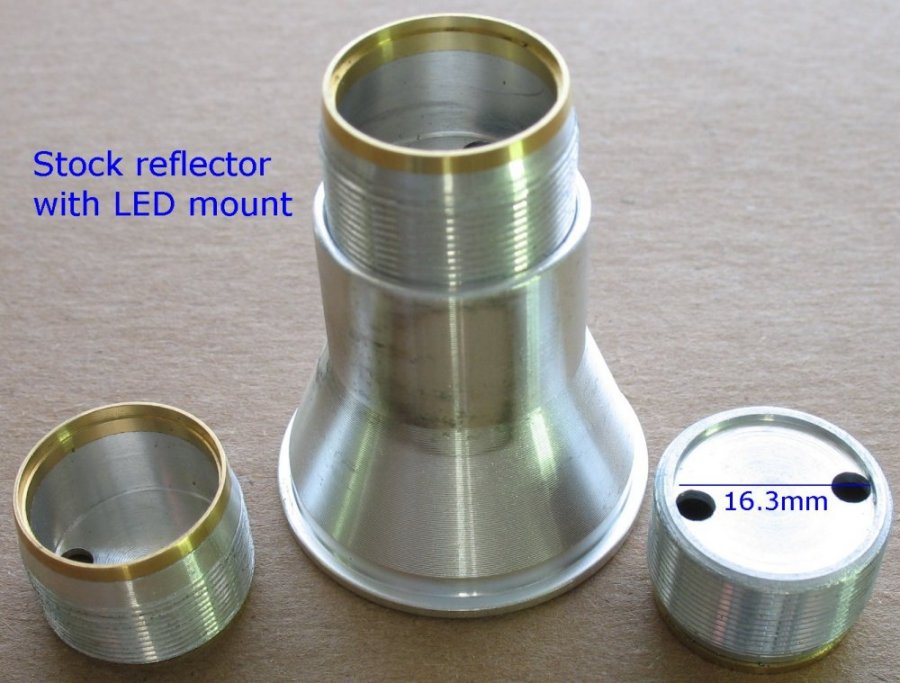

Stock 35mm aluminum reflector with threaded led mount

Reflector #1 in image above
This reflector also comes with a threaded LED mount for smaller LED's.

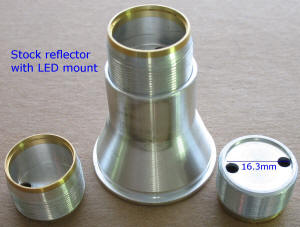

See picture above for LED mount info

This is my favorite reflector and the one I use for most P7 projects.
It also is used to convert Marwi lights to SSC P7 LED's

37mm aluminum reflector with threaded led mount

Reflector #2 in image above
This reflector also comes with a threaded LED mount for smaller LED's
See picture above for LED mount info

This reflector is what I used in the DX flashlight conversion.

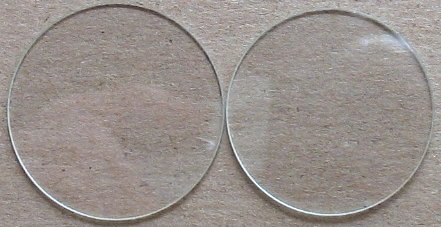

Glass 34.8mm diameter

This 34.8mm glass lens fits the Marwi light bodies

Glass 33mm diameter

Stock 1400ma current limiting boards

17mm diameter x 2.85mm tall
Used to limit current to LED's.
Use two in parallel to get 2.8 amps for a SSC P7 LED

Machined 1400ma current limiting boards

Sorry, the machined boards are no longer available
The design of the stock 1400ma boards keep changing.
I would have to redesign the clicky switch current limiter board set also.
There is not enough demand for me to do that.

Hi-Lo 1400ma current limiter board set
These are the circuit boards you would use to make my Hi-Lo current limiter.
You also need two machined 1400ma current limiter boards and two clicky switches
Note that this mod is fairly labor intensive and more difficult than the simple resistor current limiter
All four parts pictured, come as a kit

Sorry, this boards set is no longer available
The design of the stock 1400ma boards keep changing.
I would have to redesign this board set also.
There is not enough demand for me to do that.

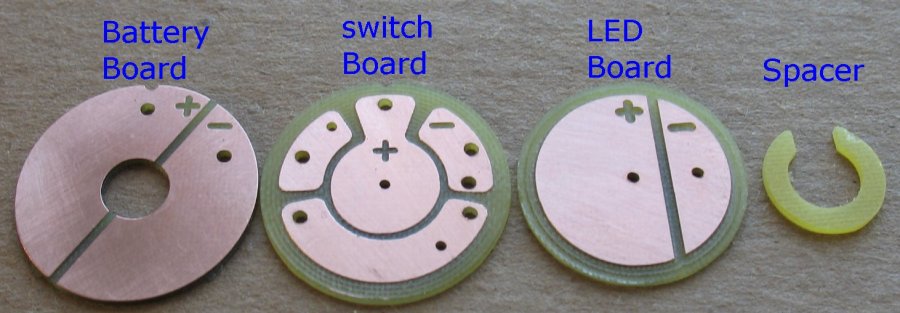

Hi-Lo simple Resistor current limiter board kit - Version 2

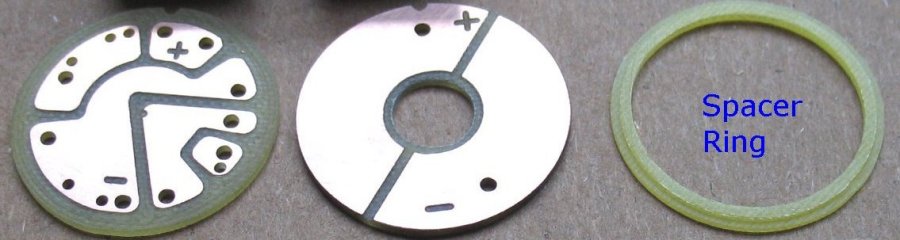

These are the circuit boards you need to build my simple resistor current limiter.
You also need two clicky switches and two current limiting resistors.
The clicky switches will be modded to make one switch.
All three parts pictured, come as a kit

See my bike lights page for info on assembling this current limiter

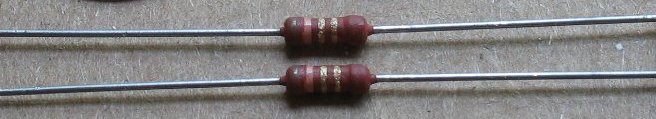

Current Limiting resistors
Vishay/Dale / 1.3 ohms / 1 watt / 5% tolerance

SSC P7 LED - C bin
3.6 volts - 900 Lumens at 2.8amps (Seoul Semiconductor figures) - 21mm Diameter x 8.5mm tall
This LED actually has four LED's on one chip that can each run at 700 milliamps each.
All four LED's runs at 2.8 amps total and the LED is rated at 900 lumens (Seoul Semiconductor figures)

The light from this LED is very white and looks very close to real daylight to my eyes.
Compared that to HID (bluish color) or Halogen (yellowish color).
I have owned Halogen and HID's and this LED blows them all away for light output

For those not familiar with this LED, this is not one of those little 5000mcd super bright LED's you see at Radio shack.
Using this converter, I plugged in a 5000mcd 30degree Super bright LED, just to see how that translated into lumens.
The converter said that would be about 1.070 Lumens, this LED is 900 Lumens
Converter page

Negative Battery terminals
These terminals slide onto a batter holder wall
Will work for many different sized batteries
They are perfect for AA and 18650 batteries
See the spec diagram below

Positive Battery terminals
These terminals slide onto a batter holder wall
Will work for many different sized batteries
They are perfect for AA and 18650 batteries
<-- Spec diagram for both Positive and negative terminals
No picture available

SPST Judco Switch and Nut

SPST Contacts - rated 14VDC at 10 amps
This switch has two 18 gauge stranded wires
Each 18 gauge lead is about 4.5 inches long
Body = .53" wide x .66" long x .90" tall to top of plunger

SPDT Judco Switch and Nut

SPDT Contacts - rated 14VDC at 2 amps
This switch has three 18 gauge stranded wires.
Each 18 gauge lead is about 4.5 inches long
Body = .53" wide x .66" long x .90" tall to top of plunger

Switching Sequence:
Off
Click1 = Red on
Click2 = Red and Black on
Click3 = Black on

Judco Rubber Switch Boot with internal nut

Waterproof the Judco switches above
This boot has a threaded switch nut inside already.
Just remove the regular Judco nut on the switch, and screw on the boot

Marwi external switch housing and Judco SPST with Switch Boot

These items are new old stock units that I removed from Marwi halogen lights
Click here for a page of big pictures and info about these switch housings

You get what you see in the picture on the left.
The switch housing, the Velcro strap and the SPST Judco switch inside with a rubber switch boot.
It comes with about a 7 inch piece of two conductor cable.
You do not get the gray PVC pipe. :)

Clicky Switches

Has the ball point pen click mechanism inside.
Off - On1 - On2 - Off - On1 - On2
Body = 14mm square x 6.58mm high - 9.4mm to top of button
If you are planning on doing any of my switch mods, get two or more of these switches.
These switches are used in many flashlights

Rubber Tail caps

Fits into a 14mm hole - 8.2mm tall
Used in many flashlights
The green cap glows in the dark after being exposed to light
Colors = Black - Green - Orange

27mm O Ring's

1-72 thread Stainless steel screws
Used to mount Led's to heat sinks
Drill a #53 sized hole and then tap with a 1/72 threaded tap
Note that these screws are included with my Marwi heat sink

MR11 halogen bulbs
New - Removed from new Marwi lights
Use a 6 volt battery pack = 5 x 1.2 volt batteries = 6 volt
Several different wattages and beam degrees
Grab bag: I reach into the box and pull one out and that's what you get.

MR11 ceramic receptacle and Judco SPST switch.
New - Removed from new Marwi lights
The MR11 bulb plugs into the ceramic receptacle .
The Judco switch rating is 14volts dc at 10 amps

Newer style Single black Marwi Halogen light
These are the newer style, Bullet shaped, Marwi Halogen lights
These lights have one 6 volt - MR11 halogen bulb
SPST On/Off Judco switch with a rubber switch boot
The connector is a Trailtech type Male power plug
All of the Marwi mounts shown on this page fit these lights.
You will need to pick out a Marwi mount to go with your light
Note that I do not stock battery packs for these lights.
I do not have any LED conversion parts for these lights.
My SSC P7 heat sink does not fit this body.
Note that these lights were shipped to me all together in a big box.
There may be slight cosmetic blemishes on the bodies, nothing serious.

Go to this page for more info, battery pack info and pictures of these lights.

Older style Single black Marwi Halogen light
These are the older style, Bell shaped, Marwi Halogen lights
These lights have one 6 volt - MR11 halogen bulb
SPST On/Off Judco switch with a rubber switch boot
The connector is a Trailtech type Male power plug
All of the Marwi mounts shown on this page fit these lights.
You will need to pick out a Marwi mount to go with your light
Note that I do not stock battery packs for these lights.
My SSC P7 heat sink fits into this body.
Note that these lights were shipped to me all together in a big box.
There may be slight cosmetic blemishes on the bodies, nothing serious.

Go to this page for more info, battery pack info and pictures of these lights.

15 Amp Red/Black Anderson PowerPole Sets for 16-18ga wire

One set includes 1-Red jacket, 1-Black jacket, two terminals and a roll pin
Each Red and Black jacket has a dovetail on all four sides so you can slide these together in all sorts of shapes.
The small roll pin locks the jackets together.
The terminals can be crimped to the wire, but crimping and soldering is best.
You push each terminal into the housing until it clicks and locks into place.
The terminals come together in a spring loaded wiping motion that keeps them clean and tight.

Go to this page Anderson PowerPole assembly instructions and more pictures

I stock Anderson PowerPole connectors on this page
Jacks and plugs page

PowerPole terminals
Extra terminals for the Anderson PowerPole connector above.
Just in case you destroy one of the terminals that comes with the set above.

I stock Anderson PowerPole connectors on this page
Jacks and plugs page

20 gauge stranded core PTFE Teflon jacket wire
Very tough jacket but still very flexible
600 volt - 200 degree C - jacket rating
19 strands of 23 gauge wire
Black and Red
Use this wire to wire up your LED's

I stock wire on this page
Wire/Cable

Black/Red 18ga zip cord and Heat shrink tubing
Jacket = .21 wide and .01 deep - Each 18ga conductor is made up of 16 strands of 30 GA wire
Used to wire up lights, battery packs, battery chargers, make leads, etc
This dual 18ga wire is not regular lamp type zip cord. It has a super flexible jacket that feels like silicon to the touch.
The wires are connected together with a very thick/tough membrane that is way harder to pull apart than regular zip cord.
This wire is really nice and 18ga means you can runs lots of DC current through it.
The overall size is nice to work with, not too large or bulky.
Go to this page Anderson PowerPole assembly instructions

I stock Heat Shrink tubing and wire on this page
Wire/Cable

Deans type connector
This is the Chinese knock off version of the famous Dean's connectors
The male plug has small springs to keep the male and female together tight
Each set includes a male, a female and 4 pieces of heat shrink tubing
You solder your wires to the outside tabs and heat shrink them for a nice clean look

I stock the Dean type connectors on this page
Jacks and plugs page

Chassis grommets for wire protection

Use the 3/16" grommet for small wires
Use the 5/16" grommet to replace the old grommet on Marwi light bodies

Grommets are on this page.

Home - Ordering Information - Returning parts - Hoffman Board manufacturers
Links - Shipping Info/policy - E-mail Me - Amplifier Service Technicians - About HoffmanAmps

The Tube amp Library of information
Click the link above for Tube amp info, Schematics, Board building information, Projects, Mods, Transformer diagrams, Photo's, Sound clips.
There are hundreds of pages of Tube amp information on my library page.

Please visit my Tube Amplifier Forum
Here's the place you can go to ask tube amplifier questions.
You will find a large community of friendly amp builders at the link above.

Search my parts catalog	Choose a link from the Hoffman Amplifiers parts catalog				View Your Shopping Cart
Amp trim/Handles	Board Building Parts	Book/DVDs	Capacitors	Chassis/Boxes	Foot Pedals
Fuses/Cords/AC	Misc. Hardware	Jacks/Plugs/Connectors	Lamps/Diodes/Switching	Pots/Knobs	Resistors
Reverb Items	Screws/Nuts/Washers	Switches	Transformers	Tube Sockets	Tubes/Valves
Wire/Cable	-	-	-	Bike Lighting Parts	Yard Sale
You can click on most of the catalog images to see a larger image - Click outside the large image to close it, or click the X on the image
