Wire, Cable and George-L cable Note: I do not have small rolls of wire. I
buy all my wire in 1000 ft spools and sell it by the
foot.

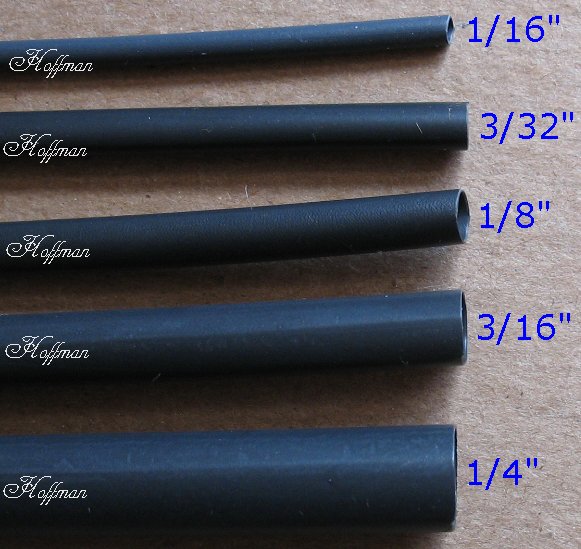

Heat shrink tubing
Heat shrink tubing
Used to insulate wires/cable and dress up connections.
Shrinks down quite small.
1/8 inch diameter heat shrink tubing
3/16 inch diameter heat shrink tubing
1/4 inch diameter heat shrink tubing

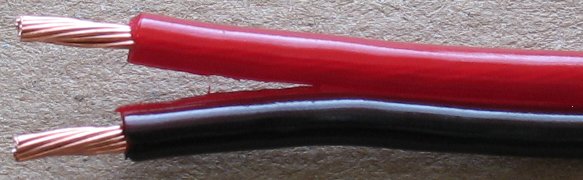

Back/Red zip cord
Black/Red 18ga zip cord Jacket = .21 wide and .01 deep - Each 18ga
conductor is made up of 16 strands of 30 GA wire
Used to wire up lights, battery packs, battery chargers,
make leads, Bias checker leads, etc
This dual 18ga wire is not regular lamp type zip cord.
It has a super flexible jacket that feels like silicon
to the touch.
The wires are connected together with a very thick/tough
membrane that is way harder to pull apart than regular
zip cord.
The overall size is nice to work with, not too large
or bulky.

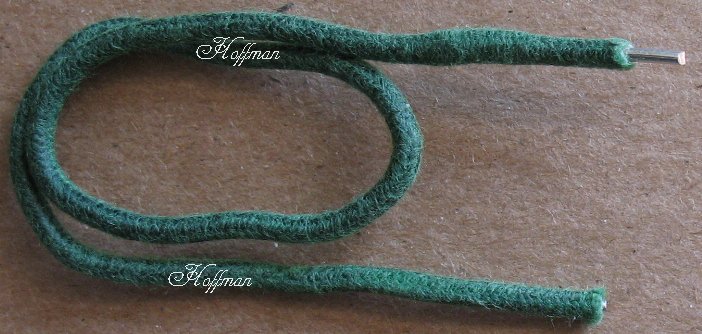

18 Gauge cloth covered wire
18 gauge Green solid core cloth
wire Used for heater wires.
20 gauge Cloth Covered wire
22 gauge, solid core Cloth
covered push-back, hookup wire. Looks, smells and taste exactly like vintage
Fender wire.
6 colors. Red - Blue - Yellow - Black - White - Brown.
Note: All the PVC coated wire below is rated at 300 volts.
300volt wire is fine for low amperage/High voltage tube amp applications

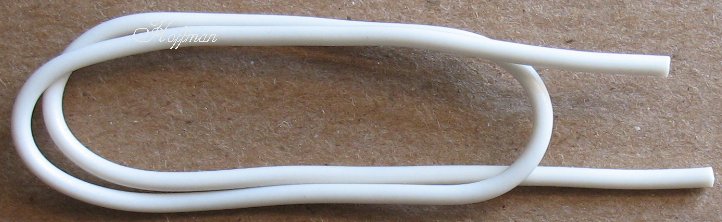

22 gauge Solid core wire
22 gauge solid core PVC coated
hook up wire White only.
Note: Strip the jacket off of this wire and use it
as Buss wire to lace turret lugs together.

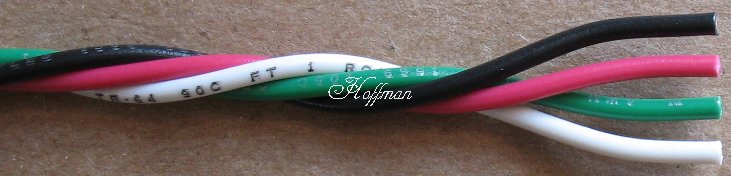

20 gauge stranded core PTFE
Teflon jacket wire Very tough jacket but still very flexible
600 volt - 200 degree C - jacket rating
19 strands of 23 gauge wire
Black and Red
Shielded cable
A - Mini shielded cable Used to make reverb cables, wire pre-amp section
in amps, wire guitars,
Similar to fender reverb cable except that there is
a black PVC coating on the outside
You can use it inside
of amps and guitars without the braid shorting something
out.
Less than 1/4 inch diameter. This cable is RG-174
Shielded cable
B - Braided Reverb cable Used on vintage Fenders and to make reverb
cables.
Braided outside. White pvc wire coating. Stranded
20 gauge wire.
Supply is limited on this item.

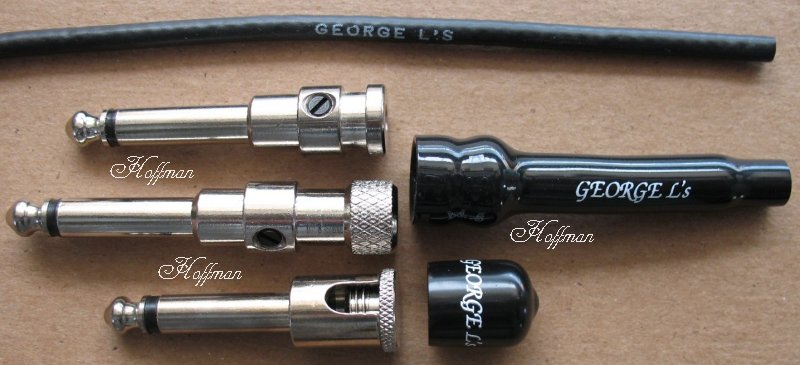

George-L cable and ends
George-L Cable .155 diameter, use with George-L ends.
I stock George-L cable Ends on this page
-
Jacks and Plugs
Sold by the foot. You must assemble the cable yourself.
Comes with instructions.
George-L cable tip: This cable is fairly rigid. When
it comes off the spool, it wants to retain that spool
shape.
A great way to straighten GL cable is to put it in
a clothes dryer for a couple minutes.
After it comes out of the clothes dryer, it will be
warm and you can then pull it out straight on the
floor.
Let it cool down and then it should be good to go.
